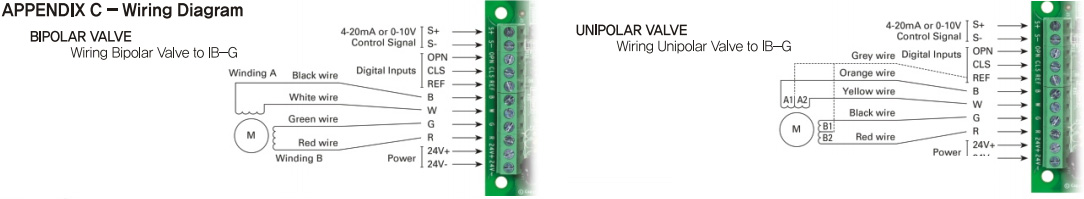

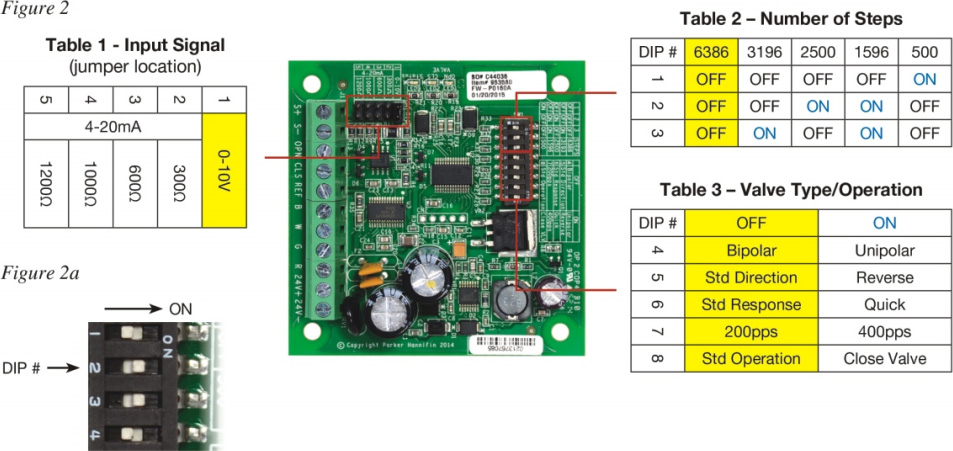

IB-G (Interface Board)
| VALVE TYPE | STEP STROKE | MOTOR TYPE |
|---|---|---|
| SDR-1x, SDR-2, SDR-2x, SEI-1/2 thru SEI-11 | 1596 | Bipolar |
| CDS-2, 4, 7, SER-AA, SER-A, SDR-B, SER-C, SER(I)-G, SER(I)-F, SER(I)-J, SER(I)-K | 2500 | Bipolar |
| SDR-3, SDR-3x, SEI-30 | 3193 | Bipolar |
| CDS-9, CDS-16, CDS-17, SDR-4, SEH | 6386 | Bipolar |
| SER-B-U, SER-C-U, SER-D-U, SER-E-U | 1596 | Unipolar |
| ESX, SEV, CEV | 500 | Unipolar |

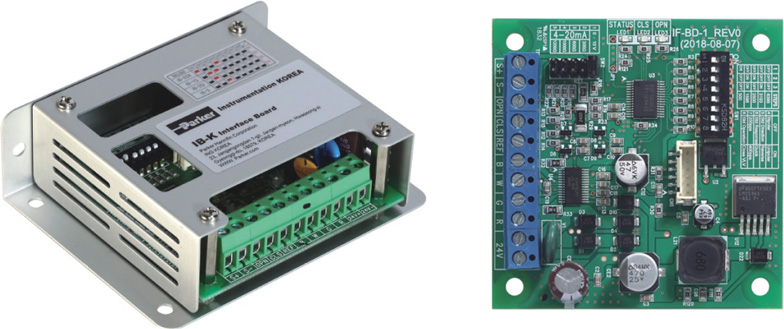

IB-K (Interface Board)
